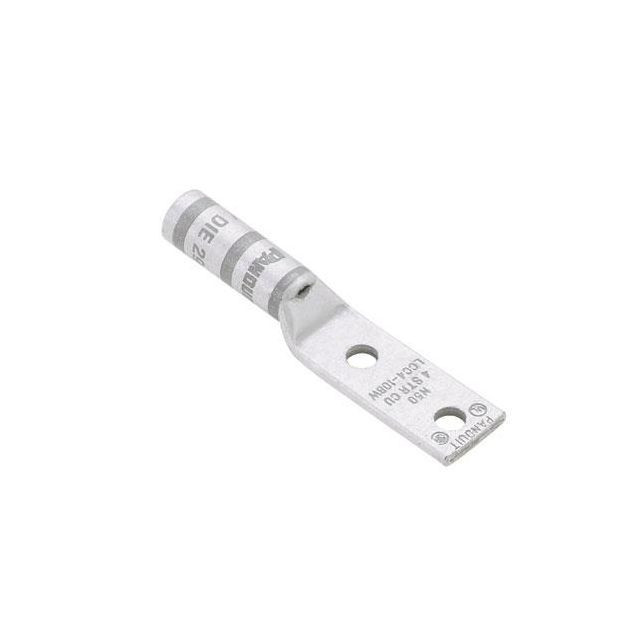

LCCX4-14AB-L
CONN TERM RECT TONG 4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCCX4-14AB-L is a non-insulated rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 4 AWG wire gauge with a 1/4 stud size, featuring a terminal style with two stud holes for secure mounting. The overall length is 2.620 inches (66.54mm) with an outer width of 0.550 inches (13.97mm) and a tab thickness of 0.090 inches (2.29mm). Termination is achieved via crimp to the barrel. This component is commonly utilized in power distribution, industrial automation, and renewable energy systems where reliable termination of heavy gauge conductors is critical. The LCCX4-14AB-L is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.620"" (66.54mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
