LCCX4/0-38DF-X
CONN TERM RECT TONG 4/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

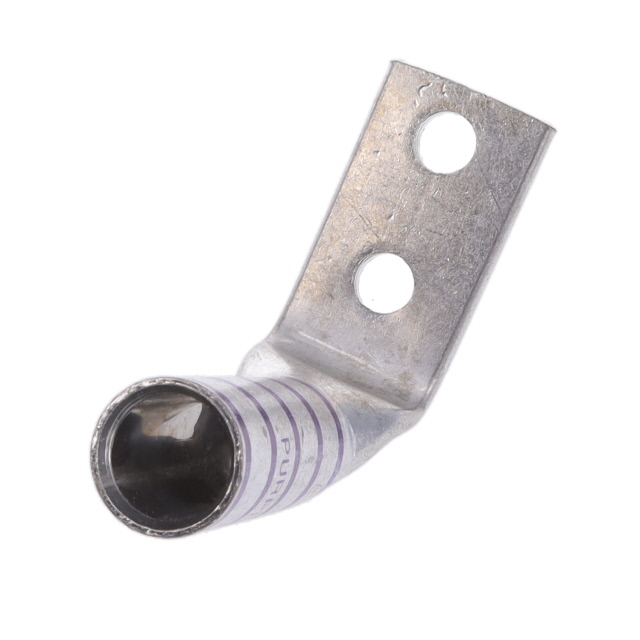

Panduit Corp Pan-Lug™ LCCX4-0-38DF-X is a non-insulated, rectangular tongue terminal connector designed for 4/0 AWG wire. This component features a 3/8 stud size with a tab thickness of 0.160 inches. The terminal style includes two stud holes, and termination is achieved via crimp to a barrel. With an overall width of 1.190 inches, this connector is suitable for applications requiring robust electrical connections. It is commonly utilized in power distribution, industrial automation, and heavy electrical equipment manufacturing. The LCCX4-0-38DF-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.190"" (30.23mm) |
| Tab Thickness | 0.160"" (4.06mm) |
| Terminal Style | Two Stud Holes |
