LCCX350-38DH-6
CONN TERM RECT TONG 350 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

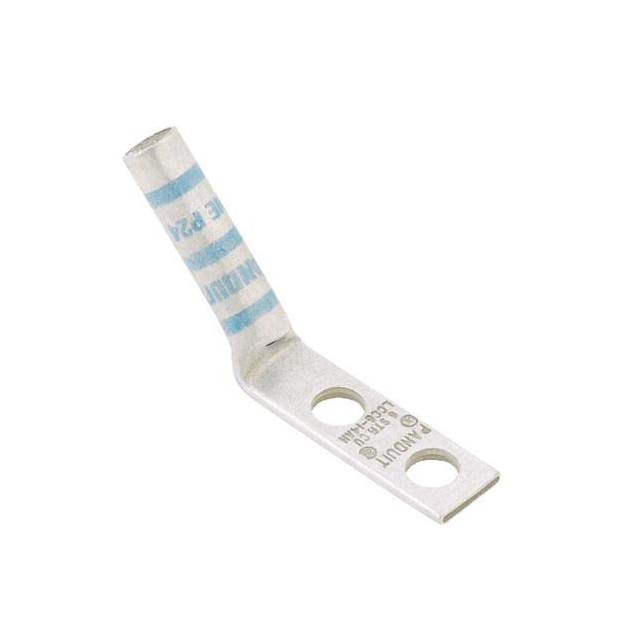

Panduit Corp Pan-Lug™ LCCX350-38DH-6 is a non-insulated rectangular tongue terminal connector designed for high-capacity power applications. This component features a 350 MCM (kcmil) wire gauge capacity and is engineered with two 3/8 stud holes for secure mounting. The terminal employs a crimp barrel termination for reliable electrical connection. Its robust construction includes a tab thickness of 0.220 inches (5.59mm) and an outer width of 1.540 inches (39.12mm). The mounting type offers flexibility with options for free hanging (in-line) or a 45° angle configuration. This Panduit Corp terminal is commonly utilized in the utility, industrial automation, and renewable energy sectors where dependable power transmission is critical. The LCCX350-38DH-6 is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 350MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
