LCCX350-12F-6
CONN TERM RECT TONG 350 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

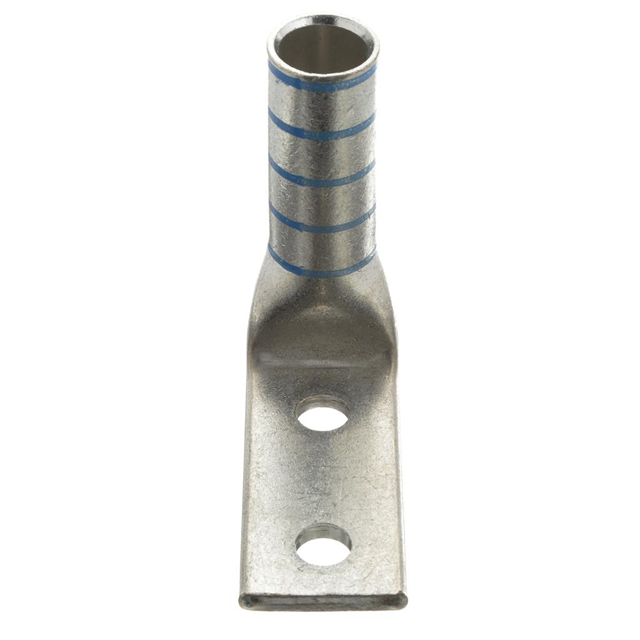

Panduit Corp Pan-Lug™ LCCX350-12F-6 is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component accommodates wire sizes up to 350 kcmil and features a 1/2 stud size for secure mounting. The terminal style includes two stud holes, facilitating multiple connection points. Termination is achieved via crimping onto the barrel, ensuring a reliable, low-resistance joint. With an outer width of 1.540 inches (39.12mm) and a tab thickness of 0.220 inches (5.59mm), this component is engineered for high-current applications. Its mounting type offers flexibility with options for free hanging (in-line) or right-angle configurations. This Panduit Corp terminal is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing sectors for its durability and performance.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 350MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
