LCCX250-38DH-X
CONN TERM RECT TONG 250 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

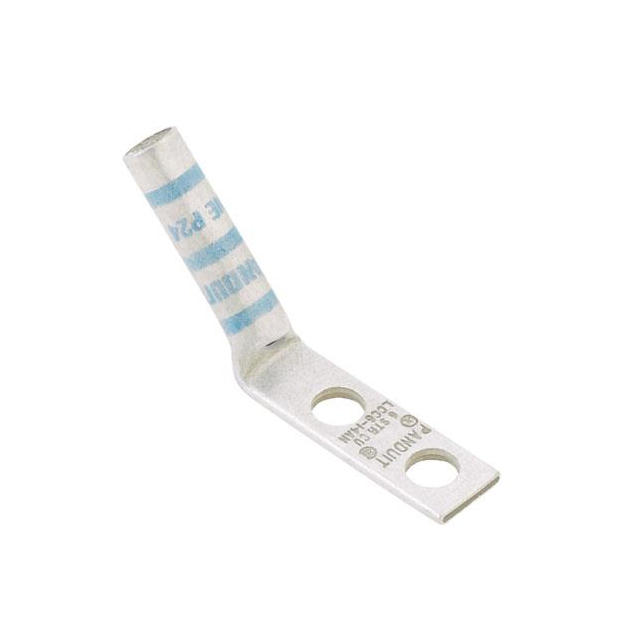

Panduit Corp Pan-Lug™ LCCX250-38DH-X is a non-insulated, rectangular tongue terminal connector designed for 250 MCM (kcmil) wire. This component features a 3/8 stud size and a tab thickness of 0.170 inches. The terminal style includes two stud holes, and termination is achieved via a crimp barrel. With an overall width of 1.280 inches, the LCCX250-38DH-X offers a free-hanging, in-line mounting type with a 45° angle option. Commonly utilized in power distribution and industrial control applications, this Panduit Corp terminal connector is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.280"" (32.51mm) |
| Tab Thickness | 0.170"" (4.32mm) |
| Terminal Style | Two Stud Holes |
