LCCX250-38DF-X
CONN TERM RECT TONG 250 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

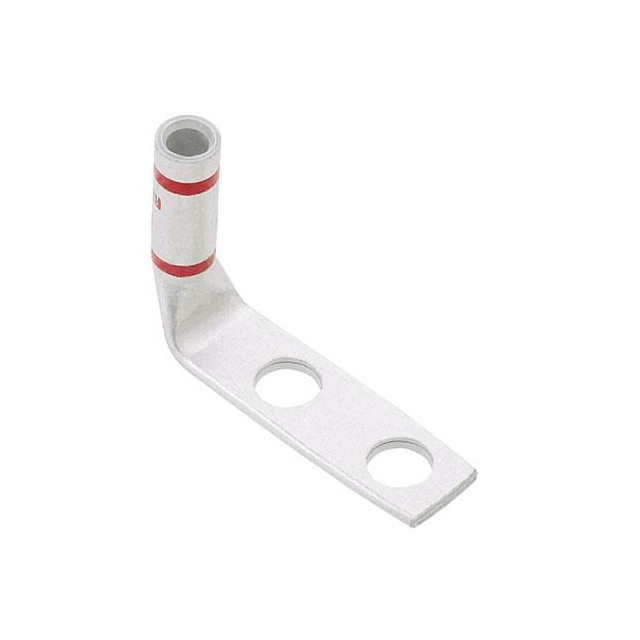

Panduit Corp's Pan-Lug™ LCCX250-38DF-X is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component features a 250 MCM (kcmil) wire gauge capacity and a 3/8 stud size, accommodating a 0.170" (4.32mm) tab thickness. The terminal style includes two stud holes, offering versatile mounting options. Termination is achieved via crimp to the barrel. With an outer edge width of 1.280" (32.51mm), this component is suitable for free hanging (in-line) or right-angle mounting configurations. The Panduit Corp LCCX250-38DF-X is commonly employed in power distribution, industrial automation, and heavy equipment manufacturing. Packaged in bulk, this yellow terminal is engineered for reliable performance in demanding electrical applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.280"" (32.51mm) |
| Tab Thickness | 0.170"" (4.32mm) |
| Terminal Style | Two Stud Holes |
