LCCX2-38DF-E
CONN TERM RECT TONG 2 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

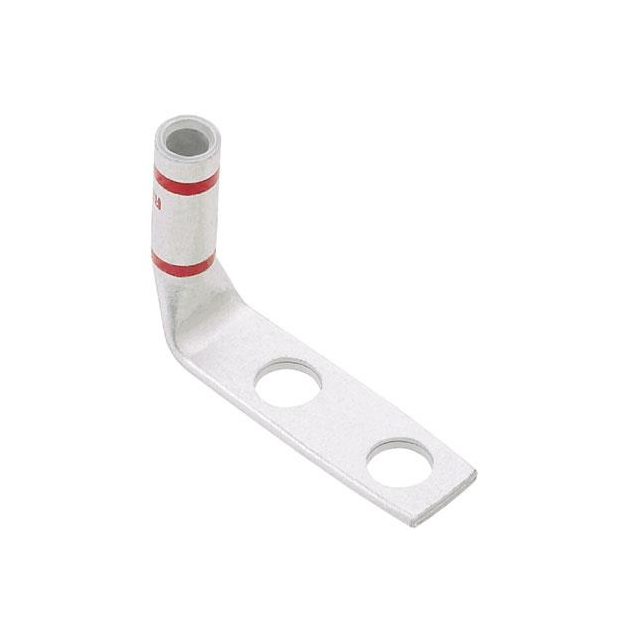

Panduit Corp Pan-Lug™ LCCX2-38DF-E is a non-insulated, rectangular tongue terminal connector designed for 2 AWG wire. This component features a 3/8 Stud size and a tab thickness of 0.110" (2.79mm). The terminal style incorporates two stud holes, and the termination method is crimp to barrel. With an overall width of 0.700" (17.78mm), it offers a robust connection solution. This terminal is suitable for free hanging (in-line) and right-angle mounting configurations. Applications for this Panduit Corp component can be found in power distribution and electrical infrastructure sectors. The LCCX2-38DF-E is provided in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Two Stud Holes |
