LCCX2-14BH-E
CONN TERM RECT TONG 2 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

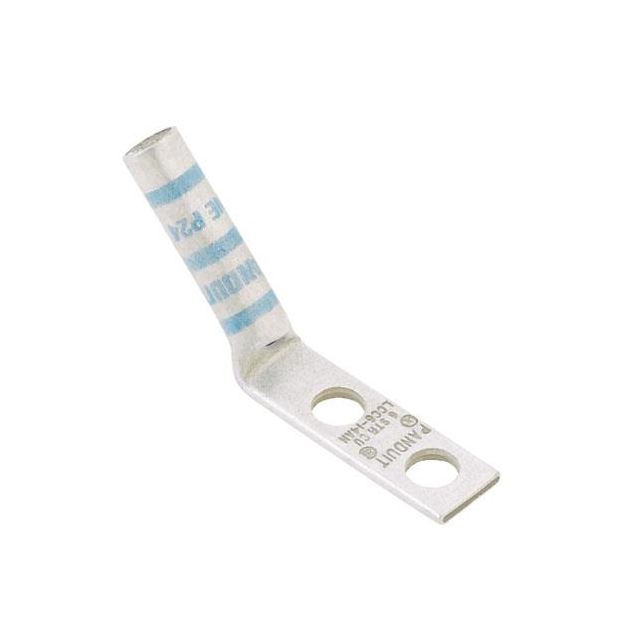

Panduit Corp Pan-Lug™ LCCX2-14BH-E is a non-insulated, rectangular tongue terminal connector designed for crimp termination. This component accommodates 2 AWG wire gauge with a stud size of 1/4 inch, featuring a tab thickness of 0.110 inches (2.79mm) and an overall width of 0.700 inches (17.78mm). The terminal style includes two stud holes, facilitating robust connections. Its mounting type is free hanging (in-line) with a 45° angle capability. This Panduit Corp offering is utilized in applications requiring reliable electrical connections for power distribution systems, control panels, and industrial automation equipment. Packaged in bulk, the LCCX2-14BH-E provides a durable solution for demanding electrical infrastructure requirements.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Two Stud Holes |
