LCCX2-12H-E
CONN TERM RECT TONG 2 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

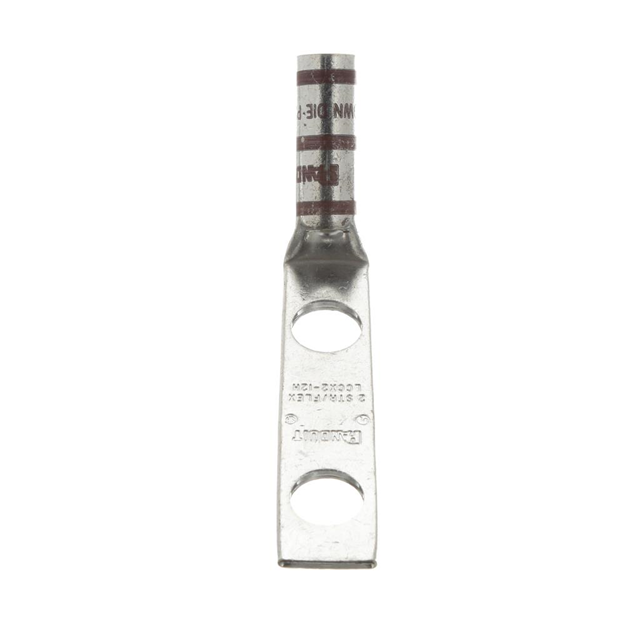

Panduit Corp Pan-Lug™ LCCX2-12H-E is a non-insulated rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 2 AWG wire gauge and features a 1/2 stud size with two stud holes for secure mounting. The terminal style is a rectangular tongue with a crimp barrel termination. Its construction includes a tab thickness of 0.090" (2.29mm) and an outer width of 0.750" (19.05mm). The mounting type is free hanging (in-line) with a 45° angle capability. This terminal is used in industrial power distribution and heavy-duty electrical applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
