LCCX2-12F-E
CONN TERM RECT TONG 2 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

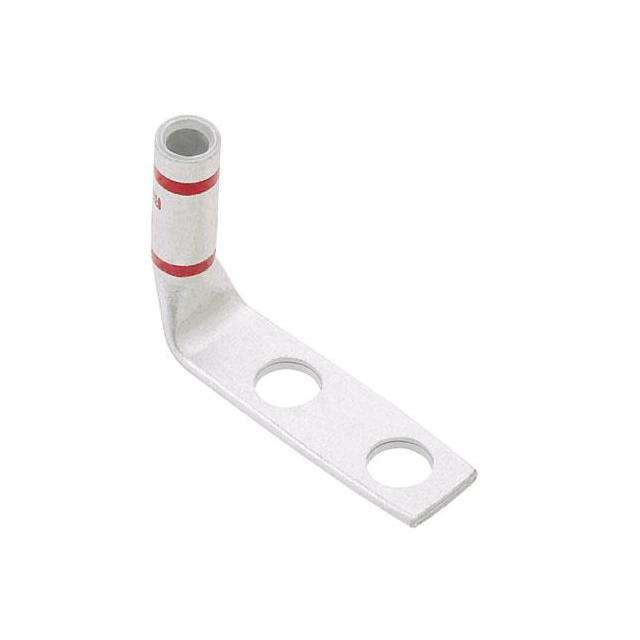

Panduit Corp Pan-Lug™ LCCX2-12F-E is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 2 AWG wire gauge and features a 1/2 stud size for secure mounting. The terminal offers two stud holes with a tab thickness of 0.090" (2.29mm) and an outer edge width of 0.750" (19.05mm). Termination is achieved via crimp and barrel methods, ensuring reliable conductivity. The LCCX2-12F-E is suitable for free hanging (in-line) and right-angle mounting configurations. This terminal is commonly utilized in power distribution, industrial machinery, and renewable energy applications where dependable termination for heavy gauge conductors is critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
