LCCX2/0-38DH-X
CONN TERM RECT TONG 2/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

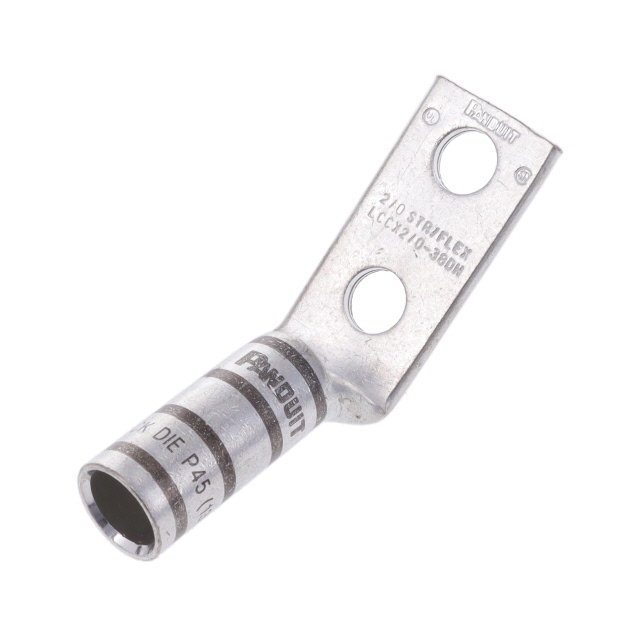

Panduit Corp Pan-Lug™ LCCX2-0-38DH-X offers a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component, suitable for 2/0 AWG wire, features a 3/8 stud size and a tab thickness of 0.130 inches. The terminal style includes two stud holes, facilitating secure mounting. Termination is achieved via a crimp barrel connection. With an overall width of 0.960 inches, it is engineered for applications requiring durable and reliable power distribution. This terminal is commonly utilized in power generation, renewable energy, and industrial automation sectors where high current carrying capacity and secure connections are paramount.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.960"" (24.38mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
