LCCX1-38D-X
CONN TERM RECT TONG 1 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

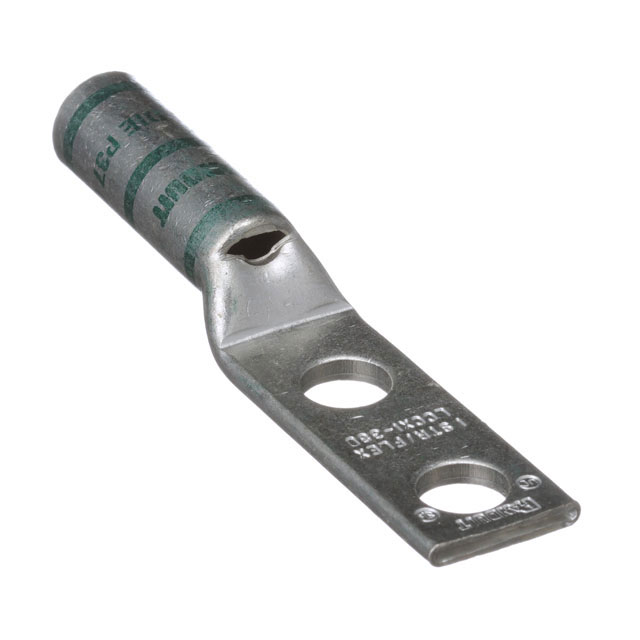

Panduit Corp Pan-Lug™ LCCX1-38D-X is a non-insulated, rectangular tongue terminal connector designed for 1 AWG wire. This component features a two-stud hole configuration with a 3/8 stud size and a tab thickness of 0.120 inches. The overall length is 3.570 inches, and the outer width measures 0.760 inches. Termination is achieved via crimp to a barrel. This durable terminal is suitable for applications in power distribution and electrical infrastructure. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 3.570"" (90.68mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
