LCCX1-14DF-X
CONN TERM RECT TONG 1 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

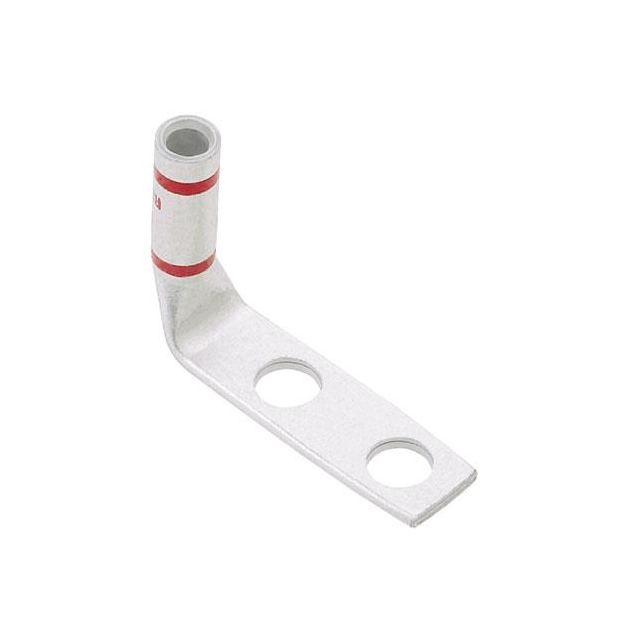

Panduit Corp Pan-Lug™ LCCX1-14DF-X is a non-insulated, rectangular tongue terminal connector designed for 1 AWG wire. Featuring two stud holes and a 1/4 stud size with a 0.120" tab thickness, this component offers a 0.760" outer edge width. The LCCX1-14DF-X is suitable for crimp barrel termination and supports free-hanging (in-line) and right-angle mounting types. This Panduit Corp component is utilized in industrial automation, power distribution, and telecommunications applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
