LCCX1-14BF-X
CONN TERM RECT TONG 1 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

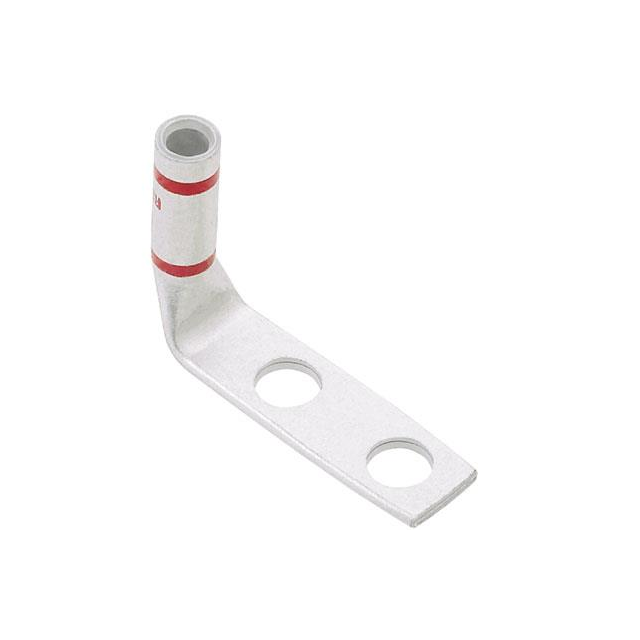

Panduit Corp Pan-Lug™ LCCX1-14BF-X is a non-insulated, rectangular tongue terminal connector designed for 1 AWG wire. This component features a crimp barrel termination and a two-stud hole configuration, with a 1/4 inch stud size and a tab thickness of 0.120 inches. The overall width is 0.760 inches. This connector is suitable for free-hanging (in-line) or right-angle mounting. It is commonly utilized in industrial automation, power distribution, and electrical infrastructure applications where robust and reliable wire termination is critical. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
