LCCX1/0-38DF-X
CONN TERM RECT TONG 1/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

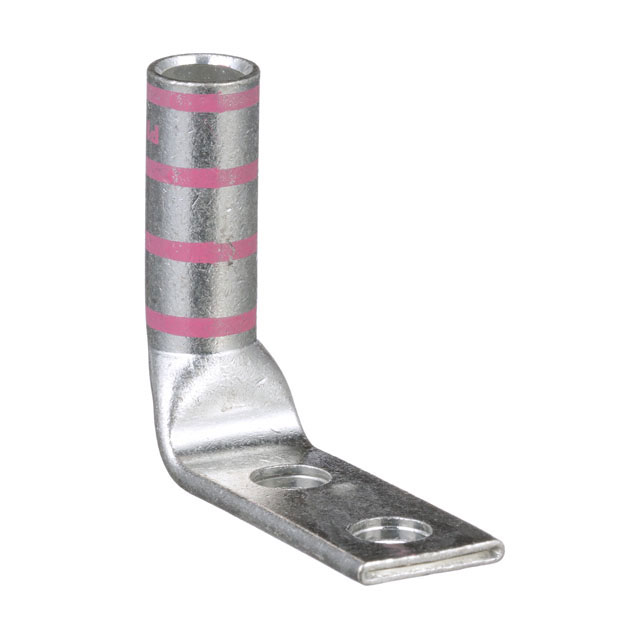

Panduit Corp Pan-Lug™ LCCX1-0-38DF-X is a non-insulated, rectangular tongue terminal connector designed for 1/0 AWG wire. This component features a 3/8 stud size and a tab thickness of 0.130 inches (3.30mm) with an overall width of 0.850 inches (21.59mm). The terminal style includes two stud holes, facilitating secure connections. Termination is achieved via crimp to the barrel. The mounting type offers flexibility with options for free hanging (in-line) or right-angle configurations. This Panduit Corp terminal is commonly utilized in power distribution and industrial automation applications, providing reliable electrical connections for demanding environments. Packaged in bulk for efficient integration into larger assembly processes.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
