LCCN750-38DW-6
CONN TERM RECT TONG 750 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

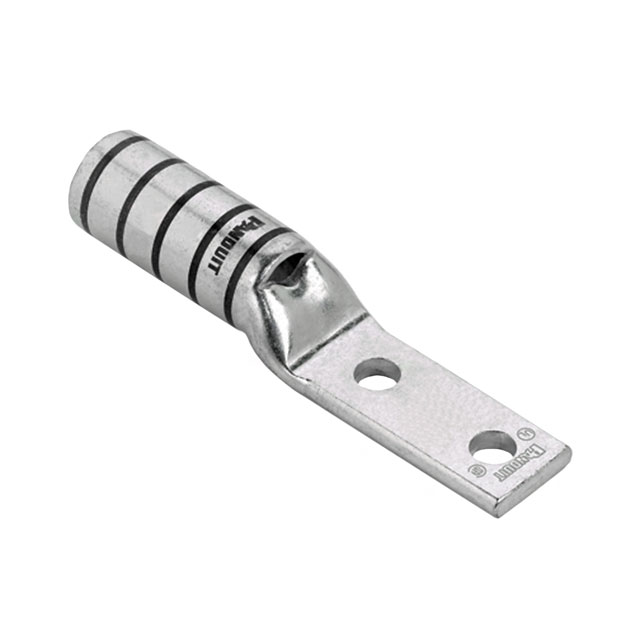

The Panduit Corp Pan-Lug™ LCCN750-38DW-6 is a non-insulated, rectangular tongue terminal connector designed for 750 MCM (kcmil) wire. Featuring two stud holes for a 3/8 stud size, this component utilizes a crimp barrel termination method. Its overall length is 5.720 inches (145.29mm), with an outer width of 1.300 inches (33.02mm) and a tab thickness of 0.280 inches (7.11mm). The free hanging (in-line) mounting type makes it suitable for applications in power distribution, industrial automation, and heavy-duty electrical systems. This connector is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 750MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 5.720"" (145.29mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.300"" (33.02mm) |
| Tab Thickness | 0.280"" (7.11mm) |
| Terminal Style | Two Stud Holes |
