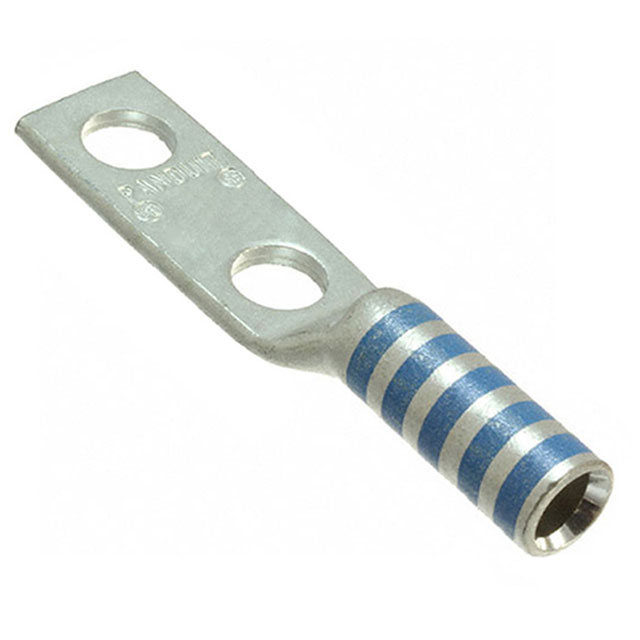

LCCH400-12-6
CONN TERM RECT TONG 400 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCCH400-12-6 is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a 400 MCM (kcmil) wire gauge capacity and accommodates a 1/2 stud size. The terminal style includes two stud holes, and the termination method is crimp, utilizing a barrel design. With an overall length of 6.100 inches (154.94mm) and an outer edge width of 1.390 inches (35.31mm), it offers substantial material for secure connections. The tab thickness is 0.180 inches (4.57mm). This connector is suitable for free hanging (in-line) mounting and is typically used in industrial power distribution and heavy-duty electrical equipment applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 6.100"" (154.94mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Two Stud Holes |
