LCCF8-14A-L
CONN TERM RECT TONG 8 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

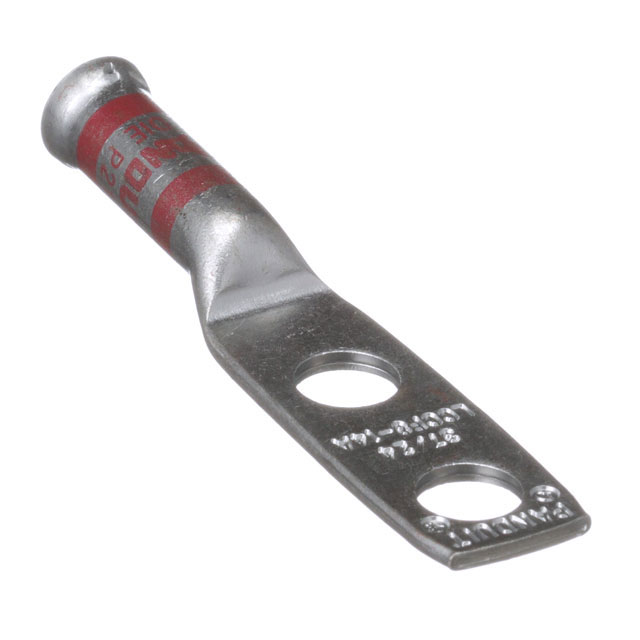

Panduit Corp Pan-Lug™ LCCF8-14A-L is a non-insulated, rectangular tongue terminal connector designed for 8 AWG wire. This component features a 1/4 stud size and two stud holes for secure mounting. The termination method is crimp, with a barrel configuration ensuring robust electrical connections. Key dimensions include an overall length of 2.220 inches (56.40mm) and a width of 0.480 inches (12.19mm). The tab thickness is 0.070 inches (1.78mm). This component is supplied in bulk packaging. Applications for the Panduit Corp Pan-Lug™ LCCF8-14A-L can be found in industrial power distribution, renewable energy systems, and automotive manufacturing where reliable wire termination is critical.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.220"" (56.40mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | Two Stud Holes |
