LCCF750-12H-3
CONN TERM RECT TONG 750 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

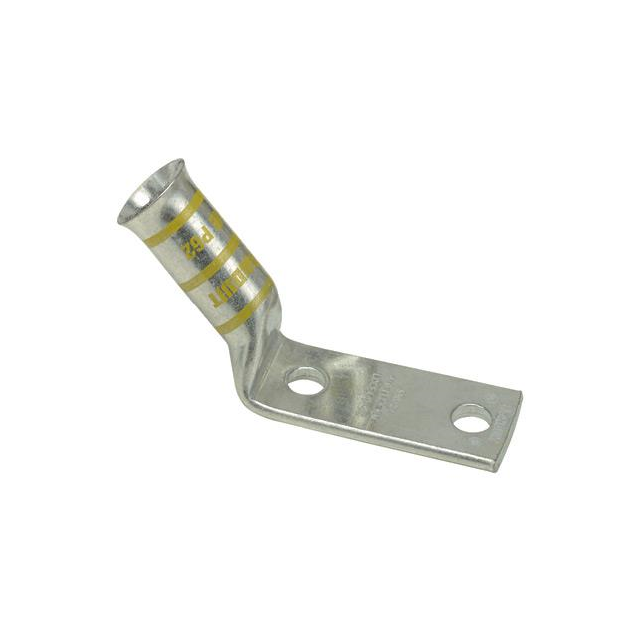

Panduit Corp Pan-Lug™ LCCF750-12H-3 is a non-insulated rectangular tongue terminal connector designed for robust wire termination. This component accommodates 750 MCM (kcmil) wire gauge with a 0.320" (8.13mm) tab thickness and a 1/2" stud size. The terminal style features two stud holes, enabling secure connections. Termination is achieved via a barrel crimp. The overall width is 2.170" (55.12mm). Mounting configurations include free hanging (in-line) and a 45° angle option. This Panduit Corp terminal is commonly employed in power distribution, utility, and industrial automation sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 750MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 2.170"" (55.12mm) |
| Tab Thickness | 0.320"" (8.13mm) |
| Terminal Style | Two Stud Holes |
