LCCF600-12H-6
CONN TERM RECT TONG 600 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

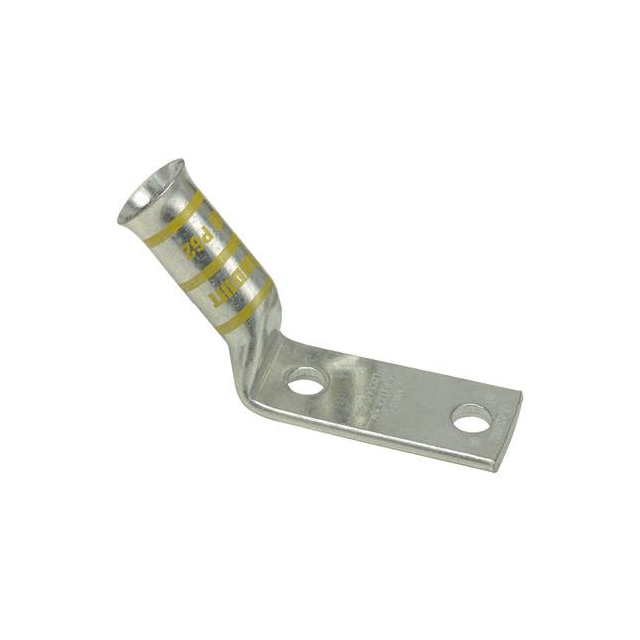

Panduit Corp Pan-Lug™ LCCF600-12H-6 is a non-insulated, rectangular tongue terminal connector designed for high-capacity power applications. This component accommodates 600MCM (kcmil) wire gauge and features a 1/2 stud size for secure mounting. The terminal style includes two stud holes, and termination is achieved via crimp to the barrel. With an overall width of 1.950" (49.53mm) and a tab thickness of 0.290" (7.37mm), it provides robust electrical contact. The LCCF600-12H-6 is suitable for various industrial and commercial power distribution systems, including energy, transportation, and heavy equipment manufacturing. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 600MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.950"" (49.53mm) |
| Tab Thickness | 0.290"" (7.37mm) |
| Terminal Style | Two Stud Holes |
