LCCF6-14BH-L
CONN TERM RECT TONG 6 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

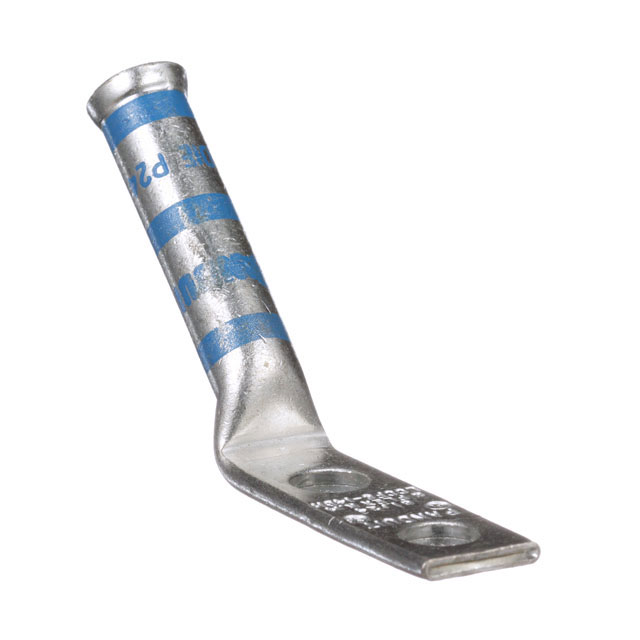

Panduit Corp Pan-Lug™ LCCF6-14BH-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a 6 AWG wire gauge capacity and a 1/4 stud size, suitable for secure termination. The terminal style includes two stud holes, with a tab thickness of 0.080 inches (2.03mm) and an outer width of 0.480 inches (12.19mm). Termination is achieved via crimping onto the barrel. Mounting options include free hanging (in-line) or at a 45° angle, facilitating versatile installation. This component is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing. The LCCF6-14BH-L is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
