LCCF500-12H-6
CONN TERM RECT TONG 500 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

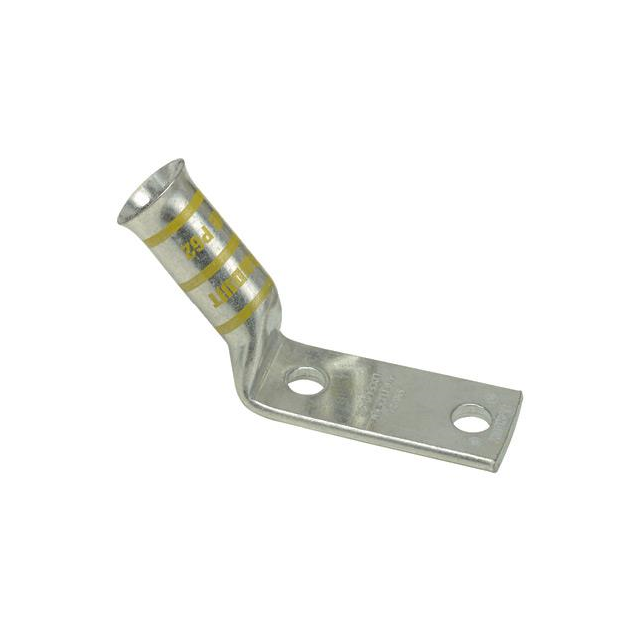

Panduit Corp Pan-Lug™ LCCF500-12H-6 is a non-insulated, rectangular tongue terminal connector designed for high-current applications. This component features a 500 MCM (kcmil) wire gauge capacity and a 1/2 stud size for secure mounting. The terminal style includes two stud holes with a tab thickness of 0.260" (6.60mm) and an outer edge width of 1.890" (48.01mm). Termination is achieved via a crimp barrel. Mounting options include free hanging (in-line) or at a 45° angle. This terminal is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.890"" (48.01mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Two Stud Holes |
