LCCF500-12F-6
CONN TERM RECT TONG 500 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

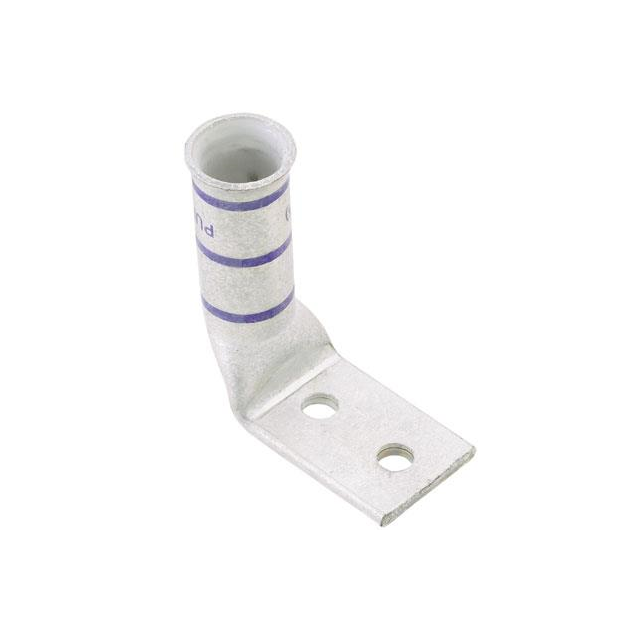

Panduit Corp Pan-Lug™ LCCF500-12F-6 is a non-insulated, rectangular tongue terminal designed for high-capacity power applications. This component features a 500 MCM (kcmil) wire gauge capacity and accommodates a 1/2 stud size. The robust construction includes a barrel termination for crimping and a 0.260" (6.60mm) tab thickness. Its design supports both in-line and right-angle mounting configurations, offering flexibility for various system architectures. The terminal's outer edges measure 1.890" (48.01mm) in width. This Panduit Corp terminal is frequently utilized in power distribution, industrial automation, and renewable energy sectors where reliable, high-current connections are critical. The LCCF500-12F-6 is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.890"" (48.01mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Two Stud Holes |
