LCCF400-12H-6
CONN TERM RECT TONG 400 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

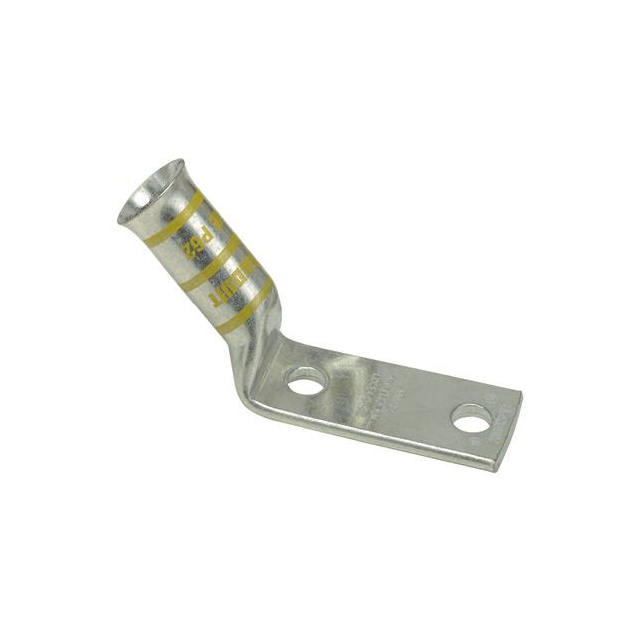

Panduit Corp LCCF400-12H-6 from the Pan-Lug™ series is a non-insulated, rectangular tongue terminal connector designed for high-current applications. This component features a direct bury barrel termination with a crimp connection for 400MCM wire gauge. The connector offers two stud holes, accommodating a 1/2 stud size with a tab thickness of 0.260 inches. Its overall width is 1.700 inches. The LCCF400-12H-6 supports both free hanging (in-line) and 45° angle mounting configurations, providing installation flexibility. This terminal is commonly utilized in power distribution systems, electrical infrastructure, and heavy industrial equipment. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.700"" (43.18mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Two Stud Holes |
