LCCF4-14BH-L
CONN TERM RECT TONG 4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

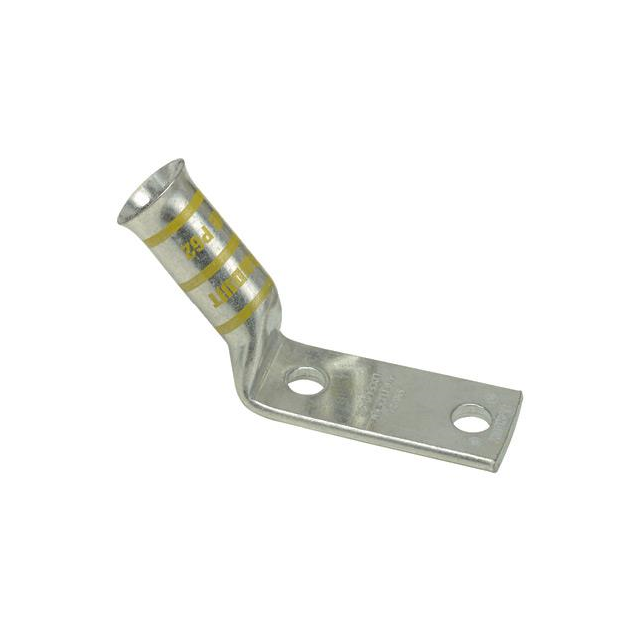

Panduit Corp Pan-Lug™ LCCF4-14BH-L is a non-insulated rectangular tongue terminal designed for robust electrical connections. This component accommodates 4 AWG wire gauge and features a 1/4 stud size with a tab thickness of 0.090 inches. The terminal style includes two stud holes, and termination is achieved via crimp barrel connection. Its outer edges measure 0.550 inches in width. The LCCF4-14BH-L is suitable for free hanging (in-line) or 45° angle mounting configurations. This terminal is commonly utilized in power distribution, industrial automation, and renewable energy systems where reliable and secure wire termination is critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
