LCCF4-14B-L
CONN TERM RECT TONG 4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

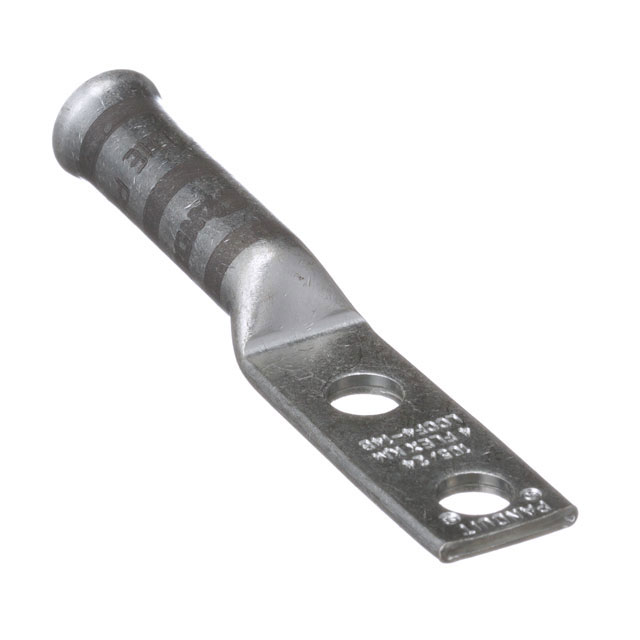

Panduit Corp Pan-Lug™ LCCF4-14B-L is a non-insulated rectangular tongue terminal connector designed for 4 AWG wire. This component features a 1/4 Stud size with two stud holes for secure mounting. The terminal style is a rectangular tongue with a crimp, barrel termination. Overall length is 2.880 inches (73.15mm), and the outer edge width is 0.550 inches (13.97mm). Tab thickness is 0.090 inches (2.29mm). This component is suitable for industrial automation, power distribution, and heavy equipment applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.880"" (73.15mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
