LCCF4-14AF-L
CONN TERM RECT TONG 4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

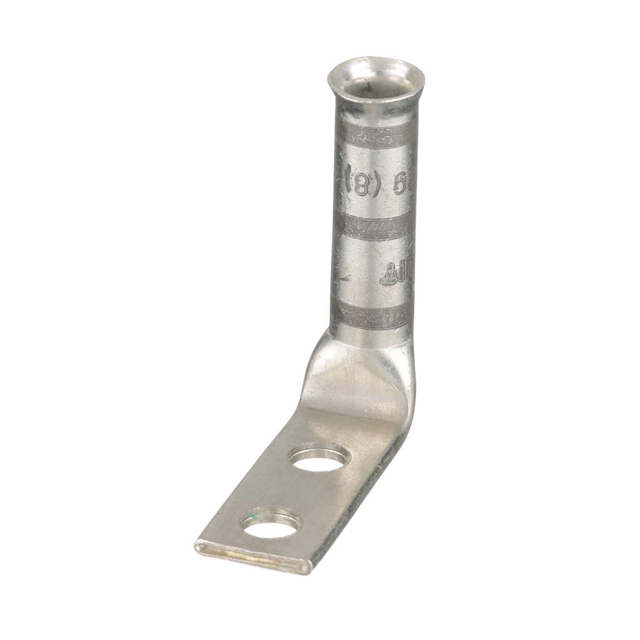

Panduit Corp Pan-Lug™ LCCF4-14AF-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component, suitable for 4 AWG wire, features a 1/4 stud size for secure fastening. The terminal style includes two stud holes, and the termination process utilizes a crimp barrel for reliable conductivity. With a tab thickness of 0.090" (2.29mm) and an outer edge width of 0.550" (13.97mm), it is engineered for applications requiring durable, high-current handling. The LCCF4-14AF-L supports both free-hanging (in-line) and right-angle mounting types, offering flexibility in assembly configurations. This component is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
