LCCF4-14A-L
CONN TERM RECT TONG 4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

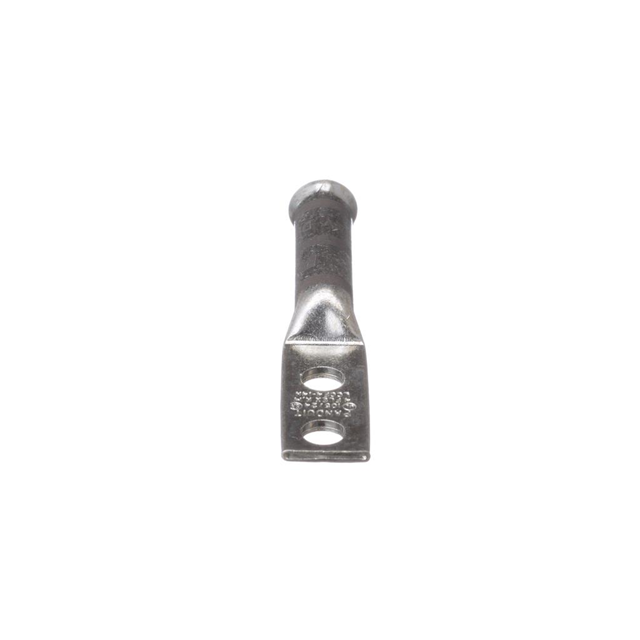

Panduit Corp Pan-Lug™ LCCF4-14A-L is a non-insulated, rectangular tongue terminal connector designed for 4 AWG wire. Featuring a 1/4 Stud size, this component offers a crimp barrel termination and a two-stud hole terminal style. Its overall length is 69.85mm, with an outer width of 13.97mm and a tab thickness of 2.29mm. The free-hanging, in-line mounting type makes it suitable for various industrial applications, including power distribution and electrical infrastructure. This component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.750"" (69.85mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
