LCCF4/0-14BH-X
CONN TERM RECT TONG 4/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

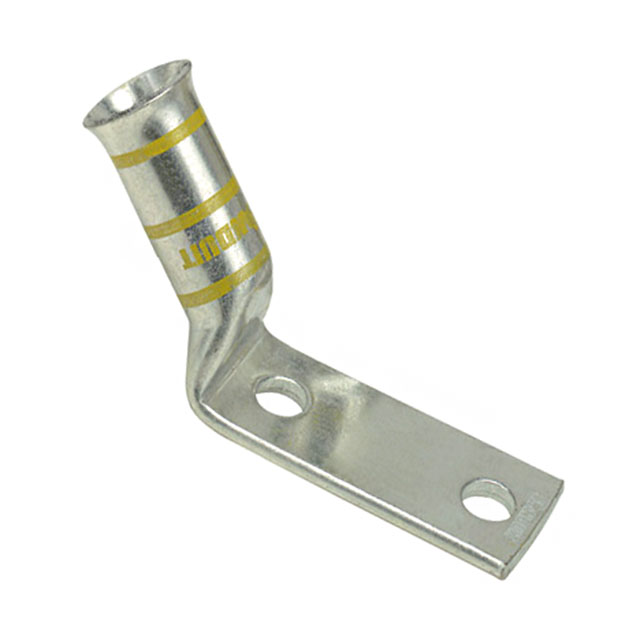

Panduit Corp Pan-Lug™ LCCF4-0-14BH-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 4/0 AWG wire gauge and features a 1/4 stud size with a tab thickness of 0.140 inches. The terminal style includes two stud holes, with a 45° angle mounting option supporting free-hanging (in-line) installations. Its outer edges measure 1.170 inches in width. Primarily utilized in industrial power distribution, heavy machinery, and renewable energy systems, this terminal connector ensures reliable termination through a crimp barrel method. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
