LCCF4/0-14B-X
CONN TERM RECT TONG 4/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

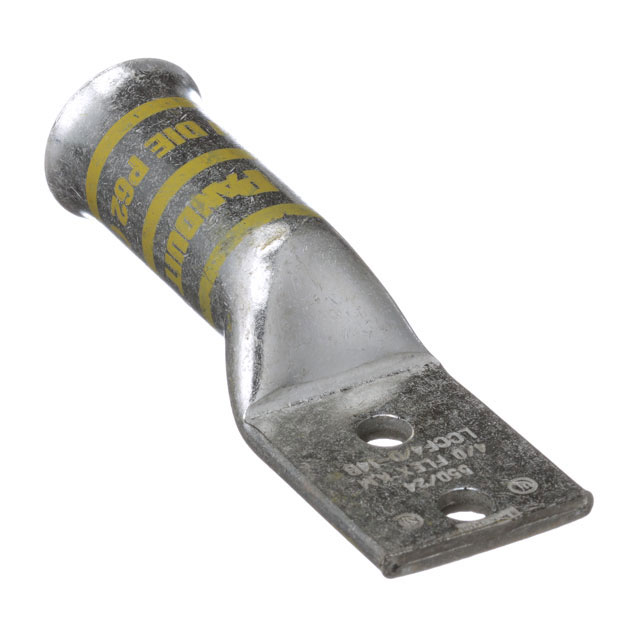

Panduit Corp Pan-Lug™ LCCF4-0-14B-X is a non-insulated rectangular tongue terminal designed for robust electrical connections. This component features a dual-stud configuration, accommodating a 1/4" stud size and a 0.140" tab thickness. Engineered for 4/0 AWG wire, it utilizes a crimp barrel termination method. With an overall length of 3.600" and an outer width of 1.170", this terminal is suitable for free-hanging, in-line mounting applications. The LCCF4-0-14B-X is commonly employed in power distribution, industrial automation, and heavy equipment manufacturing sectors where reliable, high-current connections are critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 3.600"" (91.44mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
