LCCF4/0-12F-X
CONN TERM RECT TONG 4/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

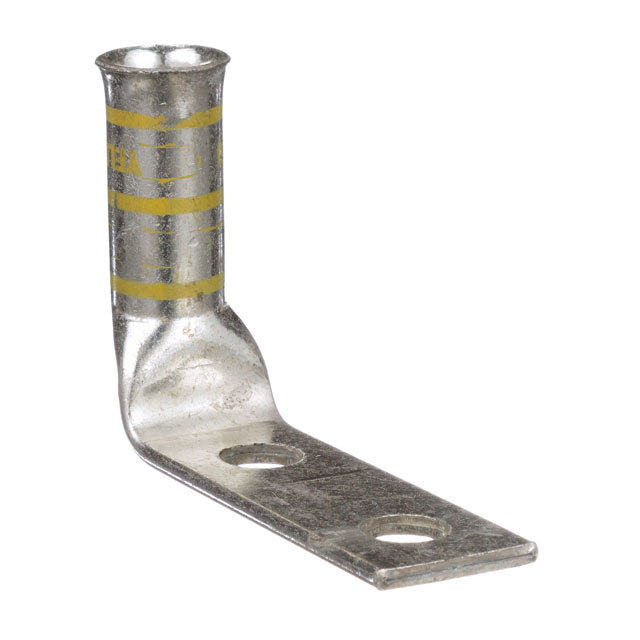

Panduit Corp Pan-Lug™ LCCF4-0-12F-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a two-stud hole design with a 1/2 stud size and a tab thickness of 0.140 inches (3.56mm). Engineered for 4/0 AWG wire, it utilizes a barrel termination with a crimp method. The outer edges measure 1.170 inches (29.72mm) in width. This terminal connector is suitable for free hanging (in-line) and right-angle mounting configurations. Its reliable construction makes it a staple in industrial power distribution and heavy-duty electrical equipment applications. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Yellow |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.170"" (29.72mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
