LCCF350-12E-6
CONN TERM RECT TONG 350 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

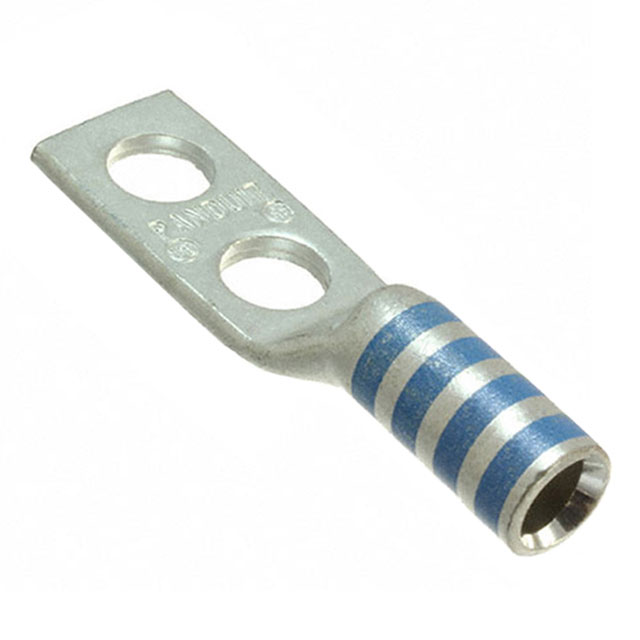

Panduit Corp Pan-Lug™ LCCF350-12E-6 is a non-insulated, rectangular tongue terminal connector designed for 350 MCM (kcmil) wire. This component features a two-stud hole configuration with a 1/2 inch stud size and a tab thickness of 0.220 inches. The overall length is 5.860 inches, and the outer edges measure 1.530 inches. Termination is achieved via crimp to the barrel. This part is suitable for in-line, free-hanging mounting. Applications for this terminal include power distribution and heavy-duty electrical connections within industrial and utility sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 350MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 5.860"" (148.84mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.530"" (38.86mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
