LCCF300-12H-6
CONN TERM RECT TONG 300 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

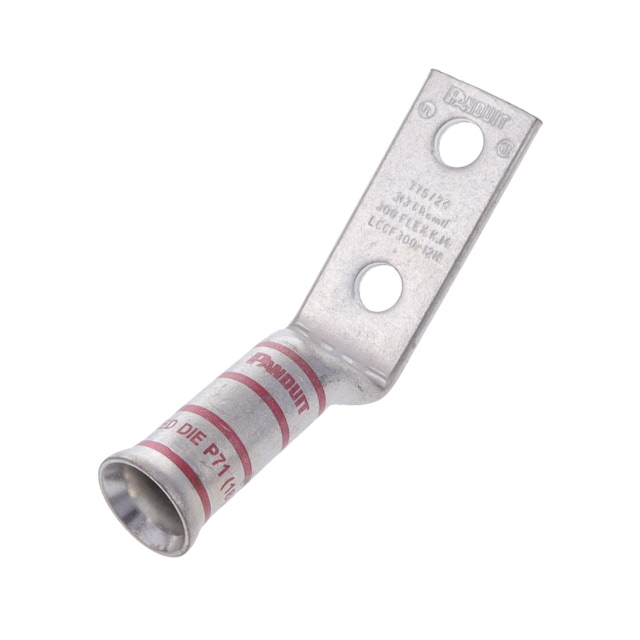

Panduit Corp Pan-Lug™ LCCF300-12H-6 is a non-insulated, rectangular tongue terminal connector designed for crimp barrel termination. This component accommodates 300 MCM (kcmil) wire gauge with a 1/2 stud size. It features a tabular thickness of 0.180 inches (4.57mm) and an overall width of 1.380 inches (35.05mm). The mounting type is free hanging (in-line) with a 45-degree angle option. This terminal is suitable for applications in the power distribution and industrial automation sectors. The LCCF300-12H-6 is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 300MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.380"" (35.05mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Two Stud Holes |
