LCCF3/0-38DF-X
CONN TERM RECT TONG 3/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

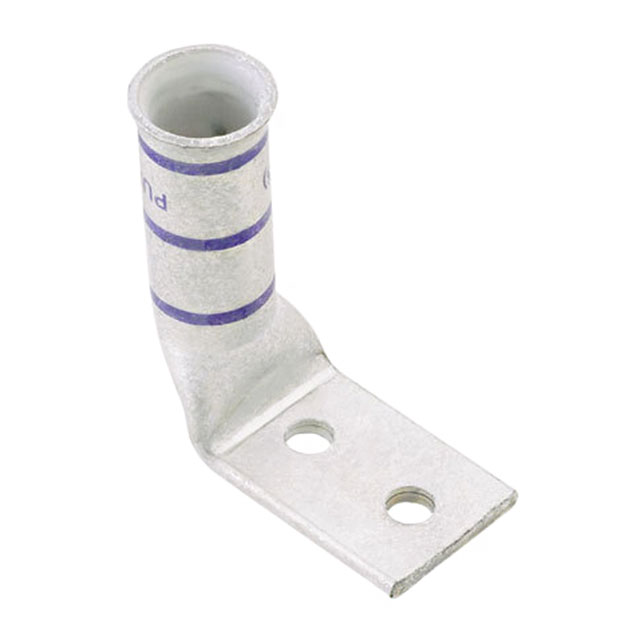

Panduit Corp Pan-Lug™ LCCF3-0-38DF-X is a non-insulated, rectangular tongue terminal connector designed for demanding electrical applications. This component features a two-stud hole configuration with a 3/8" stud size, accommodating 3/0 AWG wire. The terminal type is a rectangular tongue with a barrel termination suitable for crimping. Key dimensions include a tab thickness of 0.140" (3.56mm) and an outer width of 1.060" (26.92mm). The LCCF3-0-38DF-X is engineered for reliable performance in industrial power distribution, renewable energy systems, and heavy equipment manufacturing. It is supplied in bulk packaging and is characterized by its purple color. The mounting type is specified as free hanging (in-line) with a right-angle orientation.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
