LCCF3/0-38D-X
CONN TERM RECT TONG 3/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

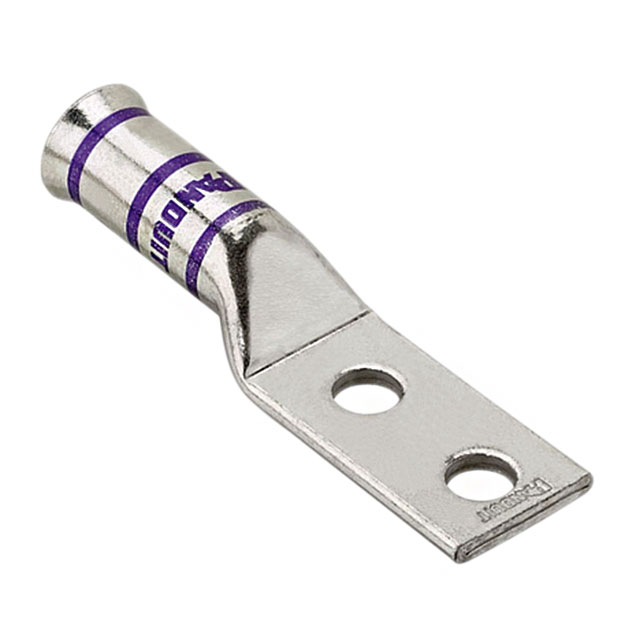

Panduit Corp Pan-Lug™ LCCF3-0-38D-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 3/0 AWG wire gauge and features a 3/8 stud size for secure mounting. The overall length is 3.990 inches (101.35mm) with a width of 1.060 inches (26.92mm) and a tab thickness of 0.140 inches (3.56mm). The terminal style includes two stud holes, and termination is achieved via crimp to the barrel. Its free hanging (in-line) mounting type makes it suitable for various industrial applications, including power distribution and heavy equipment manufacturing. This product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 3/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 3.990"" (101.35mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
