LCCF250-38DH-X
CONN TERM RECT TONG 250 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

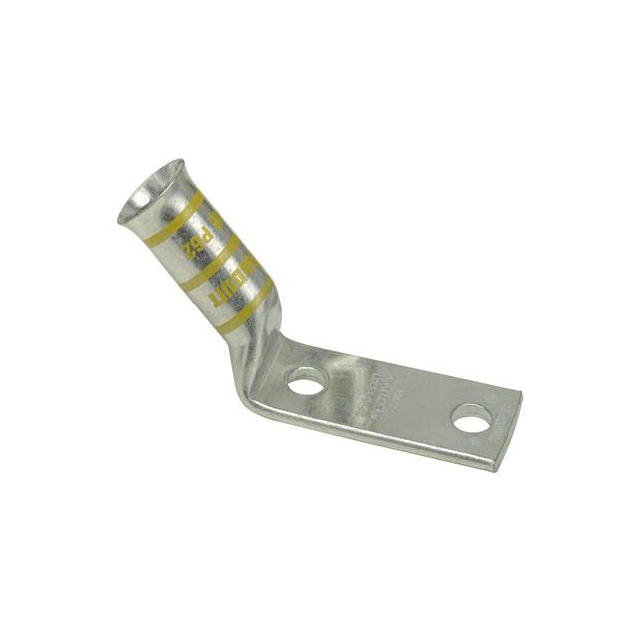

Panduit Corp Pan-Lug™ LCCF250-38DH-X is a non-insulated, rectangular tongue terminal designed for high-current applications. This component features a 250MCM wire gauge capacity and accommodates a 3/8 stud size, with a tab thickness of 0.170 inches. The terminal style includes two stud holes, and its termination is achieved via crimp to a barrel. Mounting options include free hanging (in-line) or at a 45° angle. The outer edges measure 1.280 inches wide. This robust connector is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing sectors for reliable electrical connections.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 250MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.280"" (32.51mm) |
| Tab Thickness | 0.170"" (4.32mm) |
| Terminal Style | Two Stud Holes |
