LCCF2-56B-E
CONN TERM RECT TONG 2 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

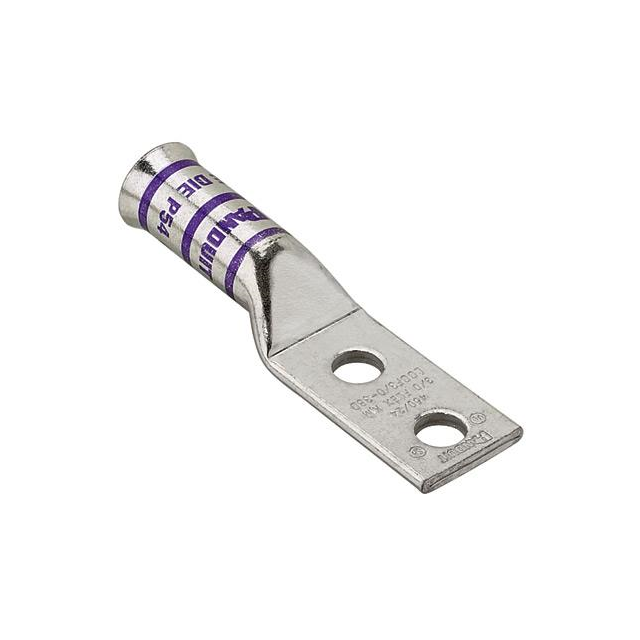

Panduit Corp Pan-Lug™ LCCF2-56B-E is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component accommodates 2 AWG wire gauge via a crimp, barrel termination. It features a 5/16 Stud size and a tab thickness of 0.110 inches. The overall length is 3.250 inches, with an outer edge width of 0.700 inches. This terminal is engineered for free hanging (in-line) mounting and includes two stud holes, facilitating secure connections. The LCCF2-56B-E is typically utilized in power distribution, industrial automation, and heavy equipment applications where reliable termination is critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | 3.250"" (82.55mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Two Stud Holes |
