LCCF2-38DF-E
CONN TERM RECT TONG 2 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

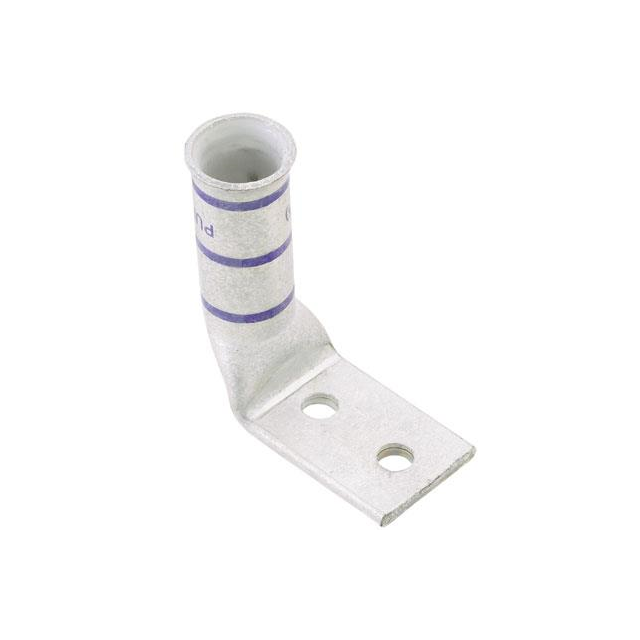

Panduit Corp Pan-Lug™ LCCF2-38DF-E is a non-insulated, rectangular tongue terminal connector designed for 2 AWG wire. This component features a 3/8 stud size and a tab thickness of 0.110 inches (2.79mm). The terminal style includes two stud holes, and the termination method is crimp with a barrel. The overall width of the outer edges is 0.700 inches (17.78mm). Mounting options include free hanging (in-line) and right angle configurations. This Panduit Corp component is utilized in power distribution and industrial electrical systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Two Stud Holes |
