LCCF2-14AH-E
CONN TERM RECT TONG 2 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

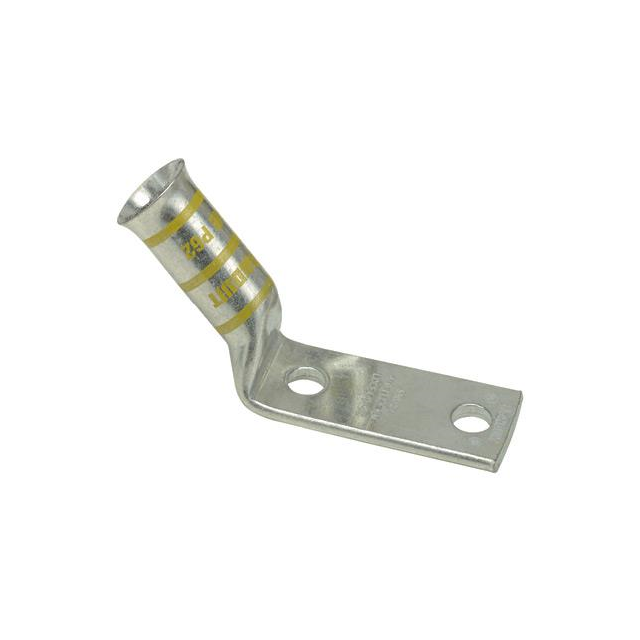

Panduit Corp Pan-Lug™ LCCF2-14AH-E is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 2 AWG wire via a crimp termination method, featuring a 0.250" stud size for secure fastening. The terminal offers a dual stud hole configuration, with a tab thickness of 0.110" and an overall width of 0.700". Its mounting type supports free hanging or in-line applications, with an optional 45° angle orientation. Primarily utilized in power distribution and industrial control systems, this component is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.700"" (17.78mm) |
| Tab Thickness | 0.110"" (2.79mm) |
| Terminal Style | Two Stud Holes |
