LCCF1-14AF-X
CONN TERM RECT TONG 1 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

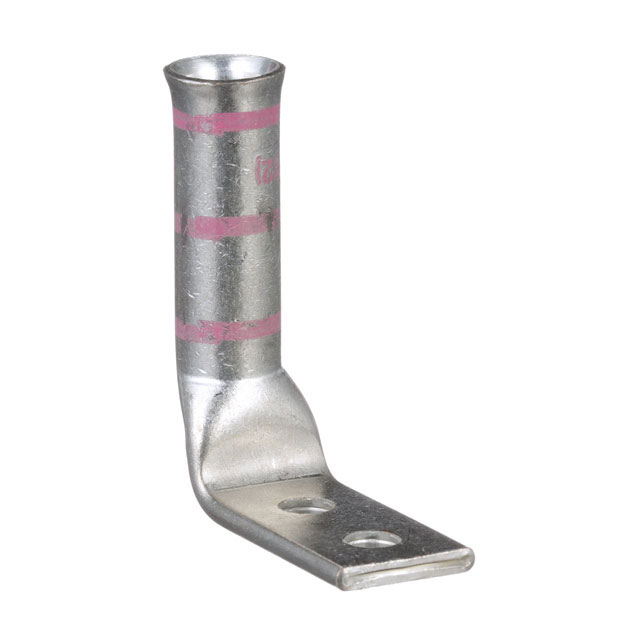

Panduit Corp LCCF1-14AF-X is a non-insulated Pan-Lug™ terminal connector featuring a rectangular tongue design. This component is engineered for 1 AWG wire gauge and utilizes a 1/4 stud size for secure termination. The terminal style incorporates two stud holes, with a tab thickness of 0.120 inches (3.05mm). It is designed for crimp termination using a barrel. The overall width across outer edges measures 0.760 inches (19.30mm). Mounting options include free hanging (in-line) and right angle configurations. This Panduit Corp terminal is commonly specified in power distribution, industrial automation, and heavy equipment manufacturing sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.760"" (19.30mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
