LCCF1-12-X
CONN TERM RECT TONG 1 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

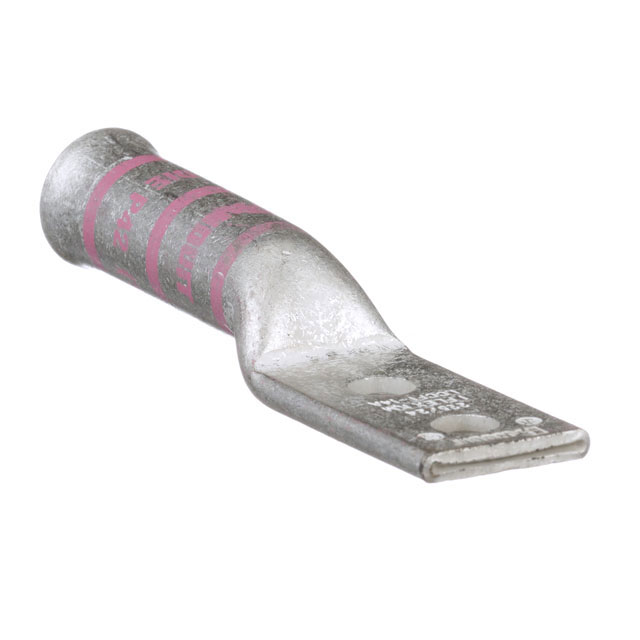

Panduit Corp Pan-Lug™ LCCF1-12-X is a non-insulated rectangular tongue terminal connector designed for heavy-duty electrical applications. This component features a dual-stud configuration, accommodating a 1/2" stud size with a tab thickness of 0.120". Engineered for 1 AWG wire, it utilizes a crimp termination method for secure barrel connections. Measuring 4.860" in overall length and 0.800" in width, the LCCF1-12-X is suitable for free-hanging, in-line mounting. Its robust construction makes it a reliable choice for power distribution, industrial equipment, and energy infrastructure. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Pink |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 4.860"" (123.44mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.800"" (20.32mm) |
| Tab Thickness | 0.120"" (3.05mm) |
| Terminal Style | Two Stud Holes |
