LCCF1/0-38D-X
CONN TERM RECT TONG 1/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

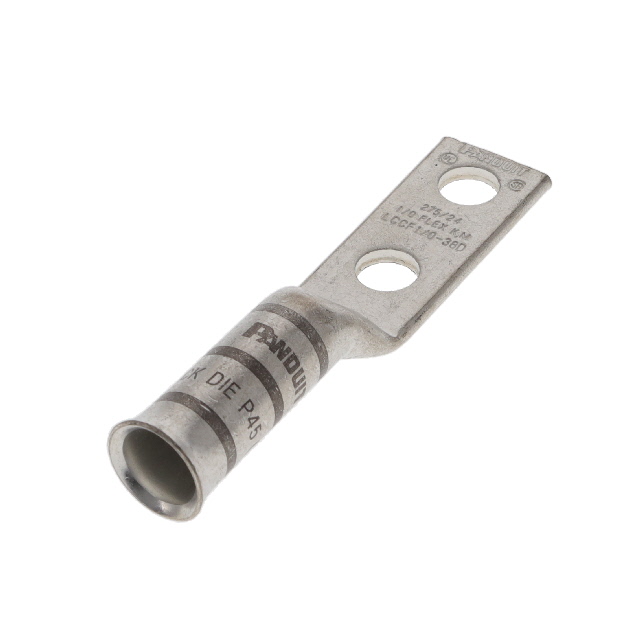

Panduit Corp Pan-Lug™ LCCF1-0-38D-X is a non-insulated rectangular tongue terminal connector designed for 1/0 AWG wire. This component features two stud holes, accommodating a 3/8 stud size and a tab thickness of 0.130 inches. The terminal style is a rectangular tongue with a barrel termination suitable for crimping. Its overall length is 3.820 inches, and the outer edges measure 0.850 inches in width. The mounting type is free hanging (in-line). This Panduit Corp terminal is commonly utilized in power distribution, industrial automation, and renewable energy applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 3.820"" (97.03mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
