LCCF1/0-14A-X
CONN TERM RECT TONG 1/0 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

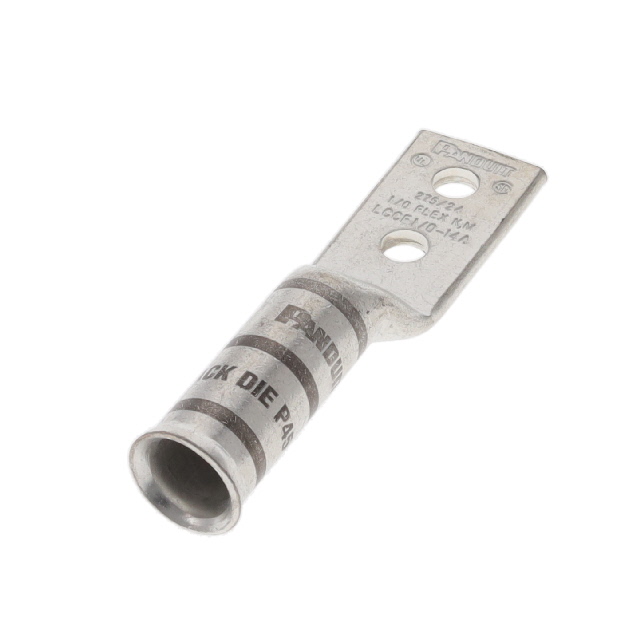

Panduit Corp Pan-Lug™ LCCF1-0-14A-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 1/0 AWG wire gauge and features a 1/4 stud size for secure mounting. Its overall length is 3.380 inches (85.85mm) with an outer width of 0.850 inches (21.59mm) and a tab thickness of 0.130 inches (3.30mm). The terminal style includes two stud holes, and termination is achieved via crimp barrel. The LCCF1-0-14A-X is suitable for applications in power distribution and industrial automation where reliable termination of heavy gauge conductors is critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 3.380"" (85.85mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
