LCCF1/0-12-X
CONN TERM RECT TONG 1/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

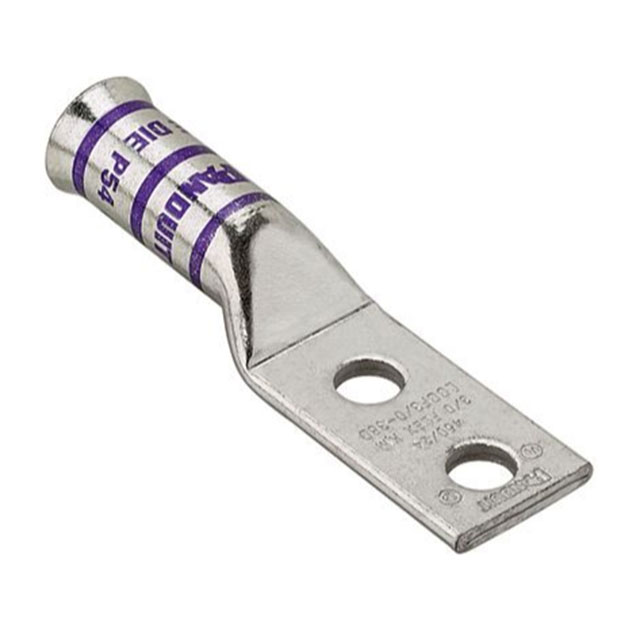

Panduit Corp Pan-Lug™ LCCF1-0-12-X is a non-insulated, rectangular tongue terminal connector designed for industrial power applications. This component features a 1/0 AWG wire gauge capacity and accommodates a 1/2 stud size. The terminal style includes two stud holes, and termination is achieved via crimp barrel connection. With an overall length of 4.980 inches (126.49mm) and an outer edge width of 0.850 inches (21.59mm), it offers robust construction. The tab thickness is 0.130 inches (3.30mm). This Panduit Corp Pan-Lug™ terminal is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 1/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 4.980"" (126.49mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.850"" (21.59mm) |
| Tab Thickness | 0.130"" (3.30mm) |
| Terminal Style | Two Stud Holes |
