LCC800-12-6
CONN TERM RECT TONG 800 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

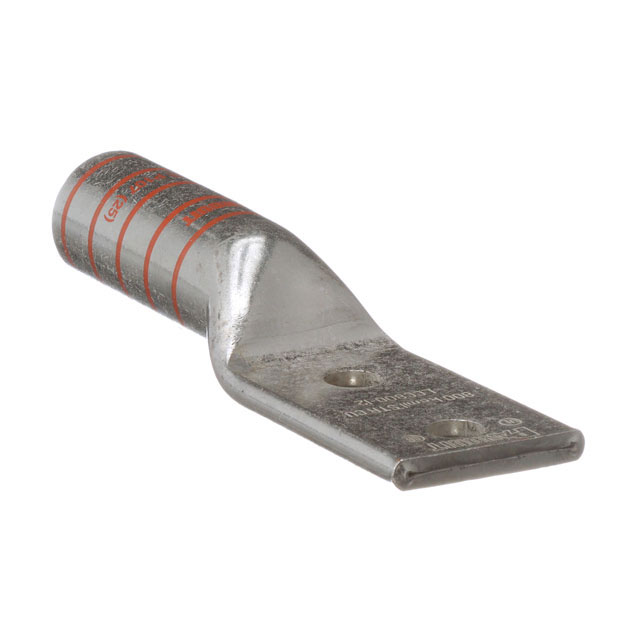

Panduit Corp Pan-Lug™ LCC800-12-6 is a non-insulated, rectangular tongue terminal connector designed for 800 MCM (kcmil) wire. Featuring two stud holes with a 1/2 stud size and a tab thickness of 0.290 inches, this component utilizes a crimp, barrel termination method. The overall length measures 7.130 inches, with an outer width of 1.950 inches. Its free hanging (in-line) mounting type makes it suitable for various applications. This Panduit Corp terminal is commonly found in power distribution, industrial automation, and heavy equipment manufacturing sectors. Supplied in bulk packaging, the LCC800-12-6 offers robust connectivity for high-current applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Orange |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 800MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 7.130"" (181.10mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.950"" (49.53mm) |
| Tab Thickness | 0.290"" (7.37mm) |
| Terminal Style | Two Stud Holes |
