LCC8-14D-L
CONN TERM RECT TONG 8 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

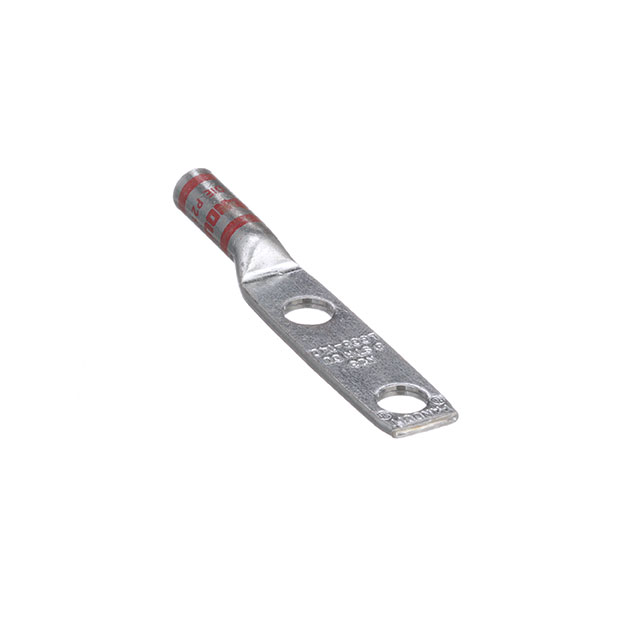

Panduit Corp Pan-Lug™ LCC8-14D-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 8 AWG wire gauge with a 1/4 stud size, featuring a crimp barrel termination for secure wire attachment. The terminal boasts a dual stud hole configuration, providing enhanced mounting flexibility. With an overall length of 2.530 inches (64.26mm) and a width of 0.480 inches (12.19mm), it offers substantial contact surface area. The tab thickness is 0.070 inches (1.78mm). This Panduit Corp terminal is suitable for applications in power distribution, industrial automation, and electrical infrastructure where reliable, high-current connections are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.530"" (64.26mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | Two Stud Holes |
