LCC8-14AH-L
CONN TERM RECT TONG 8 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

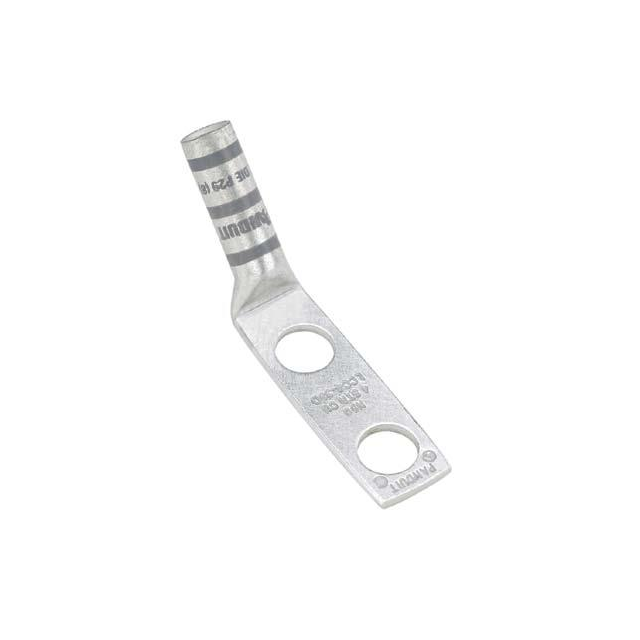

Panduit Corp Pan-Lug™ LCC8-14AH-L is a non-insulated, rectangular tongue terminal connector designed for 8 AWG wire. This terminal features a two-stud hole configuration with a 1/4 stud size and a tab thickness of 0.070 inches. The mounting type is free hanging (in-line) with a 45° angle, and the outer edges measure 0.480 inches in width. Termination is achieved via crimp, with a barrel style. This component is commonly utilized in power distribution and electrical connection applications across various industries. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
