LCC8-14ABW-L
CONN TERM RECT TONG 8 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

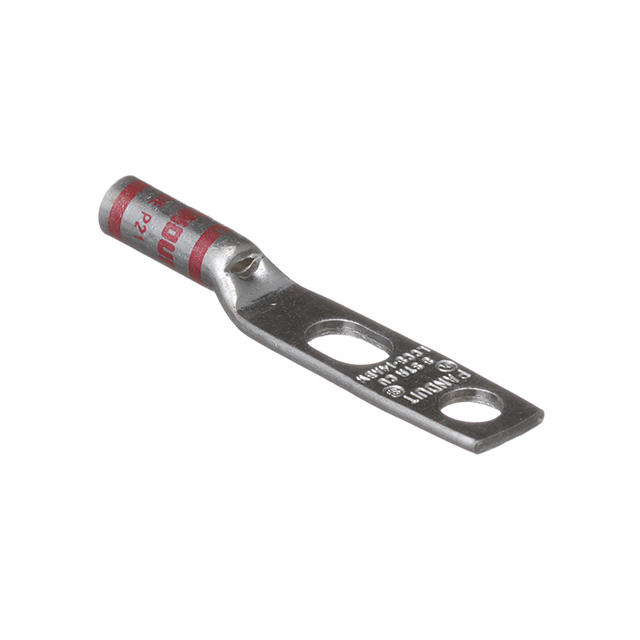

Panduit Corp Pan-Lug™ LCC8-14ABW-L is a non-insulated rectangular tongue terminal designed for 8 AWG wire. This crimp-style terminal features a barrel termination and is suitable for #1/4 stud sizes. With an overall length of 2.230" (56.64mm) and a width of 0.480" (12.19mm), it offers a tab thickness of 0.070" (1.78mm). The LCC8-14ABW-L is manufactured for free-hanging (in-line) mounting applications and comes in bulk packaging. This component is commonly utilized in industrial automation, power distribution, and renewable energy systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.230"" (56.64mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | Two Stud Holes |
