LCC8-10AH-L
CONN TERM RECT TONG 8 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

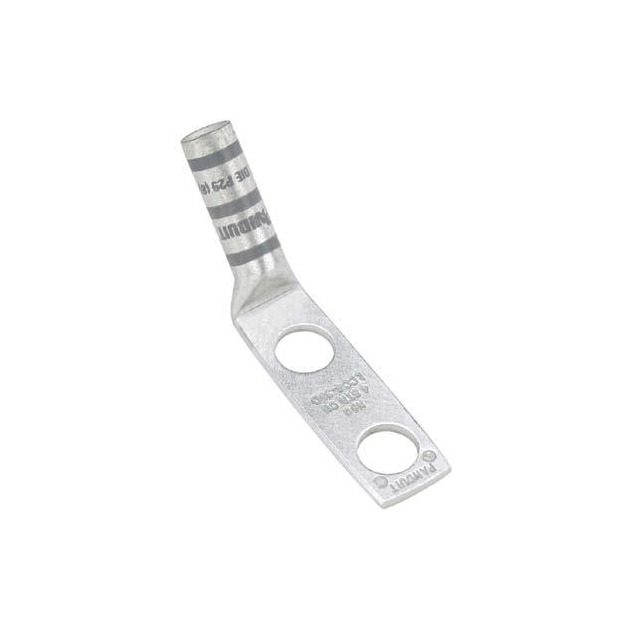

Panduit Corp Pan-Lug™ LCC8-10AH-L is a non-insulated, rectangular tongue terminal connector designed for efficient wire termination. This component is engineered with two stud holes, accommodating an 8 AWG wire gauge and a #10 stud size with a 0.080" (2.03mm) tab thickness. The terminal features a crimp barrel termination for secure connections. Its construction allows for both free hanging (in-line) and 45° angle mounting configurations, offering installation flexibility. The outer edges measure 0.410" (10.41mm) in width. This Panduit Corp component is commonly utilized in industrial power distribution, telecommunications infrastructure, and renewable energy systems where reliable electrical connections are critical. Supplied in bulk packaging, the LCC8-10AH-L provides a robust solution for demanding applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.410"" (10.41mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
