LCC8-10AF-L
CONN TERM RECT TONG 8 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

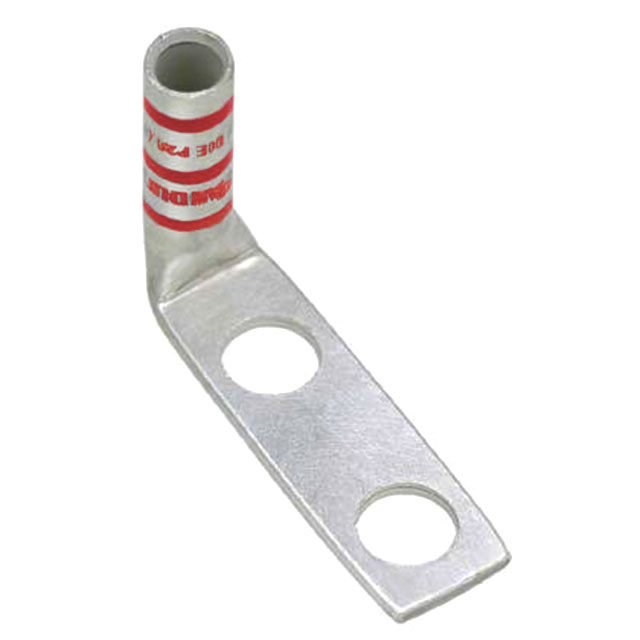

Panduit Corp Pan-Lug™ LCC8-10AF-L is a non-insulated, rectangular tongue terminal designed for reliable electrical connections. This component accommodates 8 AWG wire and features a dual stud configuration with a #10 stud size and 0.080" (2.03mm) tab thickness. Termination is achieved via crimp to the barrel. The overall width of the outer edges is 0.410" (10.41mm). This component is suitable for bulk packaging and is commonly utilized in industrial automation, power distribution, and telecommunications equipment. Its mounting type allows for both free hanging (in-line) and right-angle configurations.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.410"" (10.41mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
